Sample: Create and Use Procedure Orders


Introduction

OpenEMR can work with collections of diagnostic tests using a functionality called "Procedures". Procedures are not just for ordering lab tests and recording their results; they apply to any procedure that performs some act and records results for that act. OpenEMR's procedure orders meet the Meaningful Use requirement to store test results in the EMR as structured data.

This Procedures configuration is aimed at use with an in-house lab. If you use an external commercial lab you should get your lab orders structure from them and import it rather than build your own as shown here.

Overview

We can build single test procedures to record results for individual tests or panel procedures containing multiple tests. In this tutorial, we'll build a fairly simple panel procedure and also ann individual test procedure.

OpenEMR uses what I'm calling 'tiers' to organize procedure orders, meaning an order has up to 3 levels of detail in its descriptors. Read on to see how this organization looks in action.

Building a procedure takes four steps:

Create dummy lab

Plan the tiers

  1. Add Lab(s) to address book
  2. Create top level tier
  3. Create mid- level tier(s)
  4. Create bottom level, 'discrete results' tier(s)

Procedure

Adding lab company

Procedures configuration require a service provider of the procedure. As mentioned previously, if you use a commercial lab they will be added to the Address book; for this collection of lab procedures you will enter an in-house ('dummy') lab as shown below.

To add a lab company to the system, go to Administration > Address book.

Address book.png

Select "Add New".

Address book-add.png


















Address book-add-lab.png








.













.

Create dummy lab

In order to create procedures OpenEMR associates them with a dummy lab. So even though these procedures may not ever be sent to an actual lab, we need to create a dummy lab inside OpenEMR. If the interfacing and other requirements are ever set up to send orders to a working clinical lab, these procedures will work with that arrangement.

Add lab provider.png


1. As Administrator user, from the left nav menu: 'Procedures-> Providers' (green rectangle)
2. Click 'Add New' button (green oval)








The dummy lab only needs a name.
Add lab provider-02.png
3. Scroll down to click 'Save' button at the bottom (not pictured here)

Create Three Tier/ Panel Procedure

Plan the Three Tiers

Procedures may be visualized as having up to three “tiers”, the top, middle and bottom. Our first example will consist of the following tiers:

Tier 1: the Procedure order named, "Annual PE Labs"
Tier 2: the test "CBC"
Tier 3: the 'discrete results' of the CBC are WBCs and RBCs.
Tier 2: the test "Chem Panel"
Tier 3: 'discrete results' of the Chem Panel are Na and Glucose

Create top level tier “Annual PE Labs”

Adding tiers 01 a.png

In the top nav menu:


1. Procedures-> Configuration. (green rectangle)
2. Click 'Add Top Level' button. (green rectangle)
3. 'Add New Order/ Result Type' popup appears
4. Select from the dropdown list, 'Group' (green rectangle)
5. Enter the items:


  • Name: the lab procedure (panel) name, e.g., "Annual PE Labs"
The Group/ top level name is strictly a meaningful name for human viewing.


  • Description: Optional additional information about the procedure
  • Sequence: disregard for now; See “Info: Sequence Numbers” section below.


6. Click 'Save' button at bottom. (green oval)
Adding tiers 01 b.png

Add first tier 2 procedure

Now add the first tier 2 item, the Chem procedure order, to the Annual PE Labs procedure.


1. At the right end of the line, “Annual PE Labs”, click the '[Add]' link (green oval)
Adding tiers 02 b.png



If you must delete any tier, click its [Edit] link (pencil above).
The resulting popup will have a 'Delete' button to click.
Refresh the screen by clicking in nav menu: 'Procedures-> Configuration'




Add procedure order.png


2. In the new panel select from the top dropdown list, 'Procedure Order' (blue oval).

The new panel expands adding new fields.














Adding procedure order to lab.png
3. Enter the required items:


  • Name: what the procedure will be called.
    This is what the search module looks for when finding procedures.

  • Description: optional additional information.
  • Sequence: Leave = "0"; read “Info: Sequence Numbers” section below
  • Identifying code: may be clinical lab's code for the test or internal designator
  • Standard Code: lets you select the test's industry-standard code if the code sets have been loaded


4. Clinically significant but optional for procedure function:
  • Body Site: (default: Arm/ Buttock/ Other )
  • Specimen Type: (default: Blood/ Saliva/ Urine/ Other )
  • Administer Via: (default: Injection/ Oral/ Other )
  • Laterality: (default: Left/ Right/ Bilat )
The contents of all these dropdown lists may be edited by an OpenEMR Admin (in Administration-> Lists-> Edit Lists) section below for details.


5. Click 'Save' button at bottom. (mouse pointer)






Add second tier 2 procedure

For the second tier 2 procedure order in our Annual PE Labs procedure, repeat the previous section from step 1.

Click the '[Add]' link at the right end of 'Annual PE Labs' again, and fill out another panel with the name 'CBC' and Identifying Code, "002"


Create tier 3 “Discrete Results“ items

Next step: create the 3rd tier items, containing the discrete results for each of those procedures. Let's add the first Discrete Results tier, to the CBC.


1. Click the [Add] link at the right of that line.


Add discrete result to lab.png


The first Discrete Results: WBCs

Add discrete result wbc.png


2. Select from the dropdown list, “Discrete Result” (blue oval below)
  • Name: WBC
  • Description: optional
  • Sequence: see Info: Sequence Numbers section below
  • Identifying Code: give it 005025 from https://www.labcorp.com/search?query=wbc
  • Default Units: select from the dropdown list the units for this result.
If the units are not on the list they may be added manually; see the 'Editing Lists' discussion elsewhere.
  • Default Range: enter what your clinic considers the normal value.
These text areas are free text; OpenEMR does not evaluate normal/ abnormal values
  • Follow-up Services: reads from your OpenEMR's installed codesets to locate the code for some follow-up service to the results of this test.


3. Click 'Save' button at bottom.







The second Discrete Results: RBCs

1. Click the '[Add]' link to the right of 'CBC' to add another tier to CBC.


2. Select “Discrete Result” from the dropdown list


Add discrete result cbc.png

Name: RBC

  • Identifying Code: 007286
  • Default Units: Mil/CU.MM
  • Default Range: 4.2 - 5.4
3. Click 'Save' button at the bottom.

















The expanded Procedure Order list now looks like this:


Add discrete result to lab 02.png

Discrete Results tier for the Chemistry procedure order

First Discrete Results, Glucose

1. Click the '[Add]' link at the right end of the "Chemistry" line
2. On new panel select 'Discrete Result' from dropdown list
  • Name: Glucose
  • Identifying Code: 0110
  • Default Units: Mil/CU.MM
  • Default Range: 4.2 - 5.4
3. Click 'Save' button


Second Discrete Results, Sodium

1. Click the '[Add]' link at the right end of the "Chemistry" line
2. On new panel select 'Discrete Result' from dropdown list
  • Name: Sodium
  • Identifying Code: 0120
  • Default Units: HMOL/L
  • Default Range: 136 - 144
3. Click 'Save' button


That completes the creation of the multiple- test lab procedure.

If any row has a '+' sign in the left column, click on it to expand the row.

The finished expanded procedure screen should look like this:




“Yes” in the Order column means that you can search on the 'Name' of that row when looking up procedure orders in an encounter's 'Procedures' module; see the example below.



Create the Single Test - Two Tier Procedure

Plan the Two Tiers

The Single Test procedure has 2 tiers.

  • A top level procedure order tier named “THC Level”
  • A discrete results tier named... “THC Level”.

Create top level tier “THC Level”

Let us now add a single test procedure, for a simple THC Level.




In the procedure Configuration page (nav menu: 'Procedures-> Configuration') click 'Add Top Level' button, circled above.








Now the familiar tier 2 process:

1. Select from 'Procedure Type' dropdown list, “Procedure Order ”
2. Fill out the relevant entries.
3. Click 'Save' button (green oval)















Now add the Discrete Results tier:


1. Click the '[Add]' link at the right of THC Level (green oval)





2. Enter the 'Discrete Result' panel data (right)
3. Click the 'Save' button.














With all the procedure rows expanded our screen should look like this:


The Order column has 'Yes' in the rows named with the searchable terms;
The Code column can hold any useful or meaningful code notation for this procedure.



Using the Procedure in an Encounter

Order the Procedure

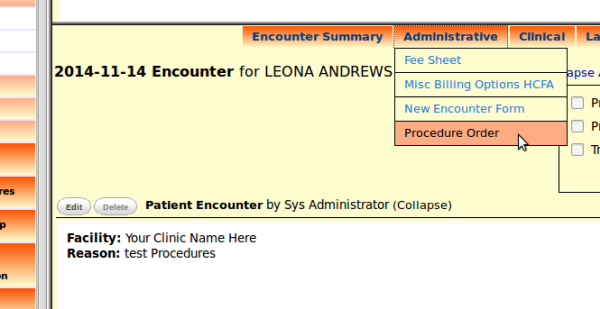

1. Click the Administrative menu item at the top of an active encounter.
2. Select the Procedure Order menu item (shaded red below).

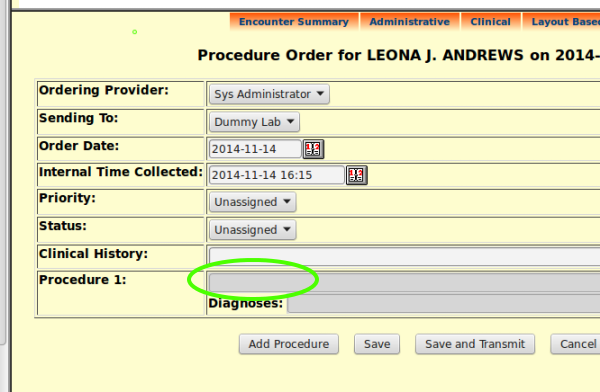

3. Initiate search for the first procedure order by clicking inside 'Procedure 1' text area (green oval below)




...which displays a 'Procedure Picker' search popup (below).

4 Enter "Chem" in the 'Search for:' text area
5. Click the 'Search' button (mouse arrow)


...and the Chemistry procedure is retrieved as clickable text (green oval above)


6. Click it to add the Chemistry procedure to the encounter.

Similarly, to add the justifying diagnosis for the procedure:





7. Click in the 'Diagnosis' text area (mouse pointer)











8. Enter in the 'Code Finder' popup any part of the desired code or description


9. Click 'Search' Button
10. Click on the desired diagnosis in the search results.
Code Finder panel disappears
11. Click 'Add Procedure' (blue oval above)




In a similar manner, add the 'THC level' procedure order to the encounter:

1. Click in 'Procedure 2' text area
2. Search for “THC” and select that procedure order
3. Click in 'Diagnosis' text area
4. Search for and select the justifying diagnosis

When finished adding procedures to the encounter, click the 'Save' button (green oval below)

To generate an HL7 file for transmission to an external lab
click on 'Save and Transmit' (blue oval below).














The encounter reappears displaying the orders for these procedures along with the results matrix.


Review Procedure Results

When the results are ready to be reviewed, they are entered and signed off in the same operation. This must be done by a Physician or a user who is privileged to sign off labs.

1. From the left nav menu: 'Procedures-> Pending Review' (green oval below left)
The screen displays all the procedures which have been ordered but not signed.




The question marks ('?') circled in blue above
are links to widgets for results data entry.




3. Click on the '?' in the 'Reported' column and select the date.













4. Click on the '?' in the 'Ext Time Collected' column and enter the time and date
Note the time indicators at bottom (green oval)











5. Click on 'Status' dropdown list and select result status















6. Enter the lab's 'Value' in that column.


7. The 'Abn' dropdown is where the Physician interprets the values as WNL or not.










8. The final '?' (blue oval far right) opens a panel into which comments and notes may be entered. These entries are displayed in 'Patient Results' screen, from the nav menu; also in 'Patient Notes' on the patient's summary screen. Click 'Close' button when finished.


9. Click the 'Sign Results' button at the bottom of the panel (green oval) and the results that have been reviewed leave the list.


10. Finally, when all the results of one procedure have been signed, they appear in the encounter screen.


If a Patient Note had been entered in step 8 above, click the button, 'Related Patient Notes' (green oval) to open this patient's 'Patient Notes' widget, found on their summary screen.

Info: Sequence Numbers

A procedure item's 'Sequence' value determines the display order of the items in the same tier.


The rule is:

  • if the sequence numbers are the same, the items display alphabetically;
  • if the numbers are different, they display in numeric order.

Let's look at this graphic and see how it illustrates the sequence numbers (for brevity let's call them “seqs”).


Incidentally, the seqs are not normally visible like this; they've been entered into the description field so we can see them for this explanation. And I've added an extra Tier 2 procedure 'ZZZ Tier 2' just for demo purposes.




  • "THC Level" and "Annual PE" are both in the top tier. Their seqs are different so “THC”s 0 displays before “PE”s 1.
  • Inside "Annual PE", the tier 2 items, "CBC" and "ZZZ" both have seqs of 0 so they display alphabetically, 'C' before 'Z'.
    The seq of tier 2 “Chemistry” is 1 so it comes after the 0's
  • Inside "CBC" the seqs are the same so they list alphabetically, RBC before WBC.
  • Inside "ZZZ" the seqs set the order 0, 1, 2
  • Inside "Chem" the seqs are both 1 so they list alphabetically.

If it doesn't matter that every item in every tier displays alphabetically, just leave all seq's '0'.
